In environments where water could damage valuable assets or sensitive electronics, gaseous fire suppression systems offer an effective and clean solution. Unlike traditional sprinkler systems that rely on water to extinguish flames, these systems use gas-based agents to suppress fires quickly and safely¹. They are widely used in data centres, electrical rooms, archives, museums, and other facilities that house critical or high-value equipment.
A gaseous fire suppression system works by either reducing oxygen levels or interrupting the chemical reactions involved in the combustion process. This allows fires to be controlled without leaving residue or moisture behind. In this blog, we’ll explore how gas suppression works, its main types, benefits, safety considerations, and how water mist systems can complement or serve as an alternative for certain environments.
What Is Gas Suppression?
Gas suppression is a fire protection method that uses inert or chemical gases to extinguish fires within enclosed spaces. When a fire is detected, the system releases the gas through agent delivery piping and dispersion nozzles, filling the protected area to stop combustion.
The system typically consists of agent storage containers, agent release valves, a fire detection system, and a wiring control panel that activates the discharge once a fire is detected. Gas suppression systems work by either reducing the oxygen concentration so the fire cannot sustain combustion or by using chemical agents to break down the combustion chain reaction.
These systems are specifically designed for enclosed spaces where conventional suppression methods, such as sprinklers, could cause significant damage or be ineffective.
Types of Gaseous Fire Suppression Systems
There are several types of gaseous fire suppression systems, each designed to meet specific needs depending on the type of risk, environment, and assets being protected.

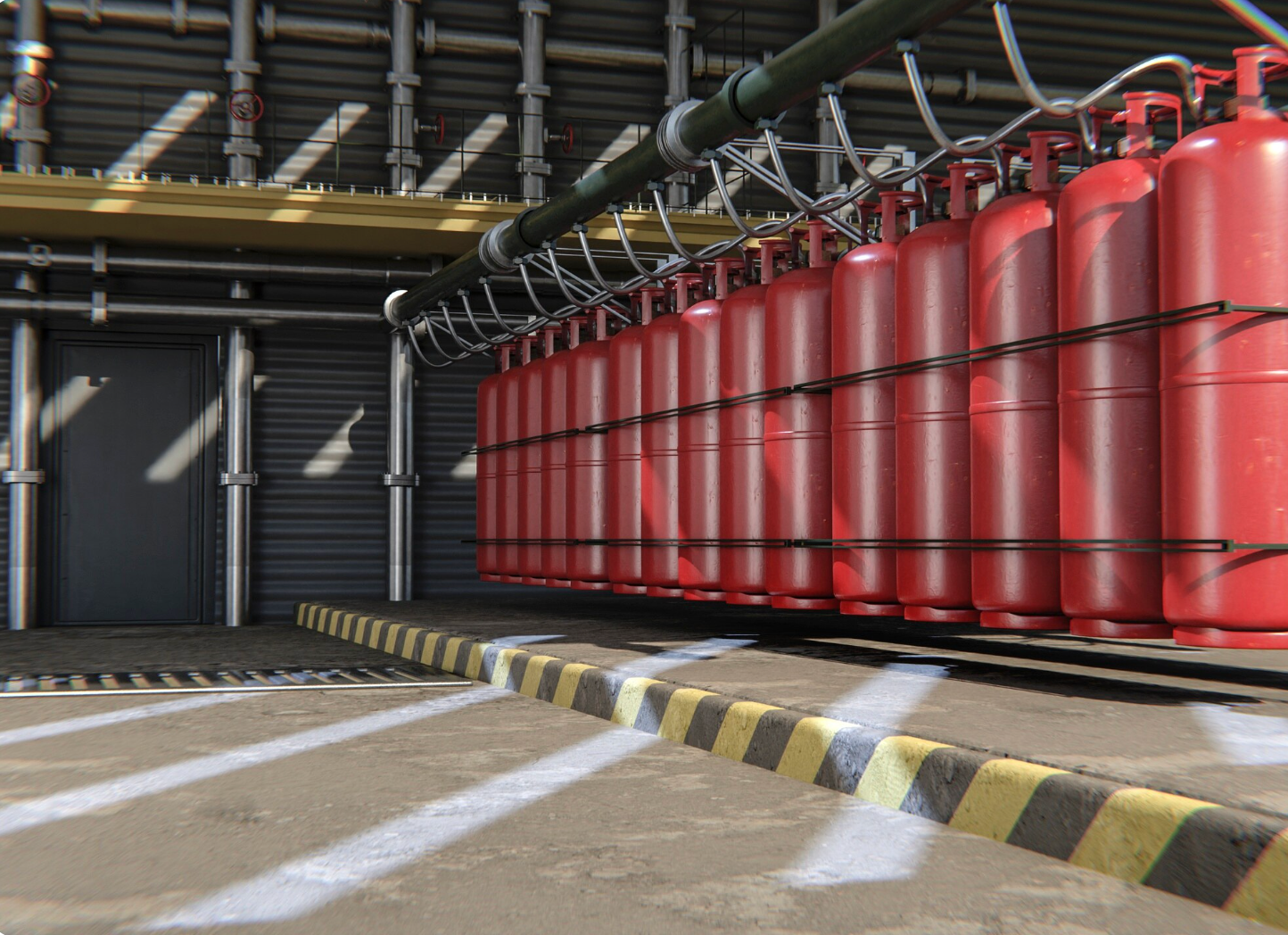

Inert Gas Systems (IG-55, IG-541, Nitrogen, Argon)
Inert gas systems use naturally occurring gases such as nitrogen, argon, or a blend of both to suppress fires. These inert gases work by displacing oxygen in the air to a level below that needed to sustain combustion, typically around 12% to 15%. Because they do not react chemically with fire, they are considered safe for most materials and equipment.
Systems like IG-55 and IG-541 are commonly installed in electrical rooms and data centres where sensitive equipment could be damaged by water or other chemical agents. Since these gases are environmentally friendly and non-toxic in low concentrations, they pose minimal risk to the environment and equipment.
Chemical Gas Systems (FM-200, Novec 1230)
Chemical gas suppression systems use clean agents like FM-200 or Novec 1230, which suppress fires by absorbing heat and interrupting the combustion process. These clean agents are ideal for protecting sensitive environments such as museums, laboratories, and control rooms, as they leave no residue and cause no water damage.
Novec 1230, for instance, is a chemical clean agent known for its excellent environmental profile and low global warming potential. It is stored as a liquid and vaporises when released, quickly extinguishing the fire without affecting the air quality for personnel.
CO₂ Systems and Their Specialised Applications
Carbon dioxide (CO₂) systems are among the oldest forms of gaseous fire suppression. They extinguish fires by displacing oxygen and cooling the fire simultaneously. However, because CO₂ significantly reduces oxygen concentration, these systems are not recommended for occupied spaces.
They are typically used in specialised industrial applications such as engine rooms, turbine enclosures, and manufacturing facilities where human presence is limited. While highly effective, CO₂ systems must comply with strict British Standards and gas suppression system regulations to ensure safety during discharge.
Benefits of Gaseous Fire Suppression
Gaseous fire suppression systems provide several benefits over traditional water-based systems, especially in settings where electrical or data damage could lead to significant downtime or loss.
Leaves No Residue or Water Damage
Unlike water-based systems, gaseous suppression agents leave no residue behind. This makes them ideal for protecting electrical equipment, data servers, and delicate materials. With no water damage or clean-up required after discharge, operations can resume quickly, ensuring minimal disruption to business activities.
Fast Detection and Suppression Response
These systems are designed to detect fires in their earliest stages using advanced smoke or heat detection technology. Once activated, gas is released almost instantly, filling the room within seconds. This rapid response helps extinguish fires before they grow large enough to cause structural damage or affect nearby areas.
Safe for Valuable Assets and Electronics
Because gaseous agents are non-conductive and non-corrosive, they can safely suppress fires involving sensitive electronics without harming the components. This makes them an ideal solution for protecting valuable assets in computer rooms, telecommunications facilities, and archive storage spaces.
Safety Considerations and Limitations
While gaseous fire suppression systems are highly effective, they come with specific safety and operational requirements to ensure their success and protect personnel.
Requires Airtight Room Conditions
To function correctly, gaseous systems require the protected area to be airtight so the gas concentration remains at the correct level for long enough to extinguish the fire. Regular room integrity testing is necessary to confirm that the structure meets the system’s design requirements.
Regular Maintenance and Pressure Checks
Ongoing maintenance is crucial to ensure the system remains ready for activation. This includes routine pressure checks on agent storage containers, inspection of valves and nozzles, and testing of the detection and control system. A properly maintained suppression system ensures maximum protection at all times.
Limited Suitability for Occupied Areas
Some gaseous agents, such as carbon dioxide, reduce oxygen to levels unsafe for human exposure. As such, they should not be used in areas frequently occupied by people. For occupied rooms, alternatives such as clean agent systems or water mist solutions are more appropriate and safer.
Where Water Mist Serves as a Low-Impact Alternative for Occupied Spaces
In many buildings, especially offices and homes, water mist systems can serve as a safer and more practical alternative to gaseous suppression. Unlike gas-based systems that rely on sealed environments, water mist technology disperses fine droplets that cool flames and reduce oxygen locally without causing water damage.
These systems are environmentally friendly, safe for use around people, and compatible with most electrical and cooking areas. For example, a water mist sprinkler system installation in Glasgow provides fire protection that is effective, low-maintenance, and suitable for occupied spaces.
If you’re comparing options, understanding the difference between water mist and sprinkler system can help you determine which solution best fits your building’s needs and fire safety strategy.
Final Thoughts
Gaseous fire suppression systems play an integral role in modern fire protection, particularly for facilities housing sensitive equipment or high-value assets. By using inert gases or chemical clean agents, these systems extinguish fires without leaving residue or causing water damage, ensuring critical areas remain protected.
However, they require proper installation, airtight conditions, and regular maintenance to perform effectively. For spaces that are regularly occupied, water mist systems offer a low-impact, people-safe alternative that provides both reliability and environmental benefits.
Whether you’re protecting a data centre, electrical room, or office environment, understanding how different suppression systems work helps you choose the most effective fire safety strategy for your building and its occupants.
Source:
- Firetrace International. (n.d.). Gases used in fire suppression systems. Firetrace International.
