Fire is a powerful and potentially destructive force that can develop in seconds when the right conditions are present. Understanding what are the three elements of the fire triangle is one of the most important foundations of fire safety, as it explains exactly how fires start, spread, and can be extinguished. Whether in homes, commercial premises, or high-risk environments, every fire requires three essential components to exist. Remove just one of these elements, and the fire will be extinguished. This simple model is widely used in fire prevention, firefighting strategies, and safety training because it provides a clear and practical way to understand combustion.
In this guide, we explore the fire triangle in detail, break down each element, and explain how this knowledge can be applied to prevent fires and respond effectively when they occur.

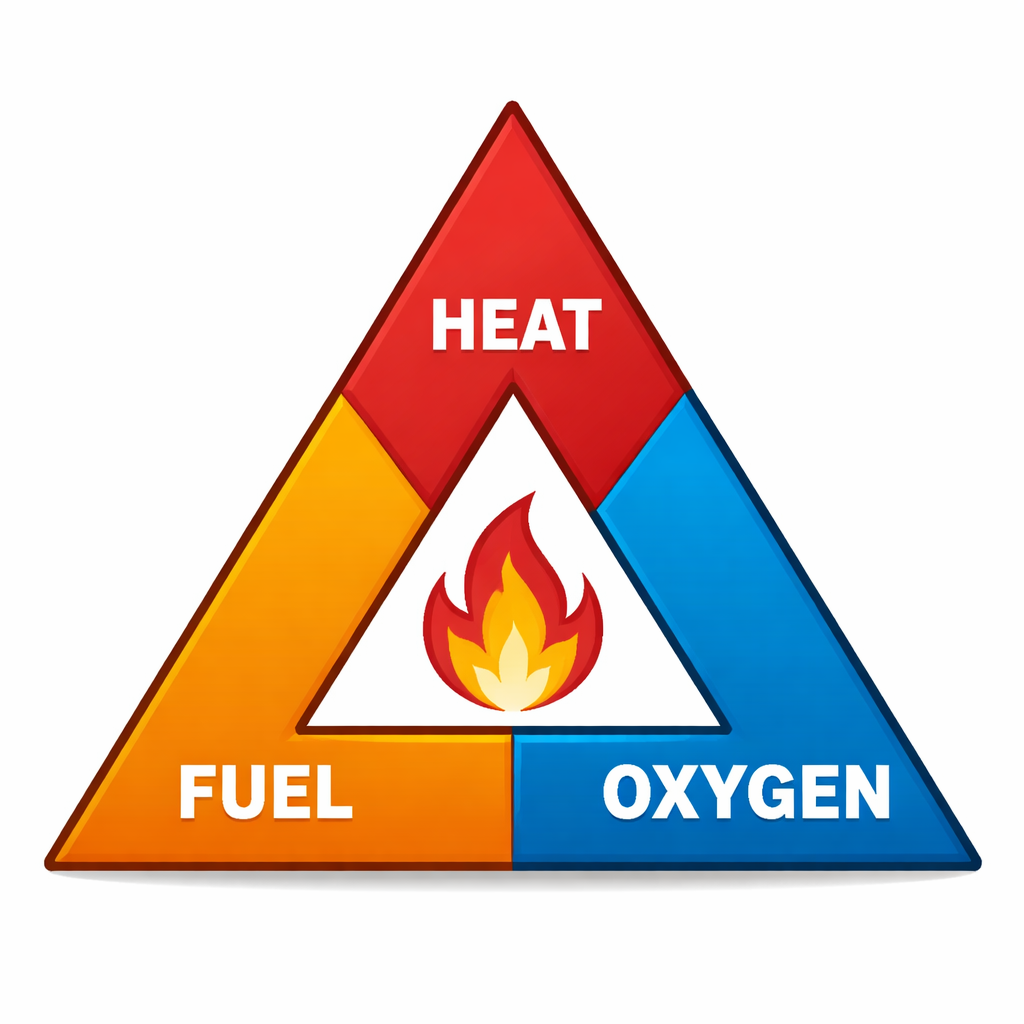

The Fire Triangle
The fire triangle is a simple model used to explain how fire works and what is needed for combustion to occur.
At its core, the fire triangle consists of three elements: heat, fuel, and oxygen. These three elements must all be present in a sufficient amount for a fire to ignite and continue burning. If any one of these elements is removed, the fire breaks and can no longer sustain itself.
This concept is sometimes expanded into the fire tetrahedron, which includes a fourth element known as the chemical chain reaction. However, the fire triangle remains the most widely used and easiest to understand model, especially for everyday fire safety awareness.
The relationship between these elements explains why most fires behave the way they do. For example, an ignition source such as a spark or open flames provides enough heat to raise a combustible material to its ignition temperature. Once ignited, the fire produces more heat through an exothermic reaction, allowing it to spread and sustain itself as long as fuel and oxygen are available.
Understanding the fire triangle helps explain how different types of fire extinguishers work and why specific fire prevention strategies are effective. It also highlights how quickly a small fire can escalate if all three elements remain present.
Element 1: Heat
Heat is the first element of the fire triangle and provides the energy needed to start and sustain a fire.
Heat sources can come from a wide range of everyday activities and equipment. Examples include electrical appliances, friction from machinery, open flames, and even sunlight concentrated through glass. In an electrical fire, faulty wiring or overloaded circuits can generate enough heat to ignite surrounding materials.
For a fire to begin, the heat must raise a material to its ignition temperature. This is the point at which the material releases vapours that can ignite and burn. Different materials have different ignition temperatures. For example, wood requires a certain level of heat before it will ignite, while flammable liquids such as petrol have a lower flash point and can ignite more easily.
Once a fire starts, it produces more heat as part of the combustion process. This additional energy can spread the fire to nearby materials, creating a chain reaction that allows the fire to grow rapidly.
Controlling heat is a key aspect of fire extinguishing. Cooling methods, such as using water or water mist systems, reduce the temperature of the burning material and remove the heat element from the fire triangle. Without enough heat, the fire cannot continue to burn.
Element 2: Fuel
Fuel is the second element of the fire triangle and refers to any combustible material that can burn.
Fuel sources are found everywhere, from natural materials like wood and paper to synthetic materials such as plastics and fabrics. In many environments, especially in high-risk settings, there may also be flammable liquids, gases, and chemicals that can act as fuel.
For a fire to sustain itself, there must be enough fuel present. The type and amount of fuel can influence how quickly a fire spreads and how intense it becomes. For example, a small amount of paper may result in a short-lived flame, while a larger quantity of combustible material can lead to a more significant fire.
Different materials also burn in different ways. Solid materials such as wood produce embers and smoke, while flammable liquids can create rapid and intense flames. Gases can spread quickly and ignite explosively if mixed with air in the right proportions.
Managing fuel is a crucial part of fire prevention. Keeping flammable materials away from heat sources, storing hazardous substances safely, and maintaining a clean environment can significantly reduce fire risk. Removing or limiting fuel sources is one of the most effective ways to prevent fires from starting or spreading.
Element 3: Oxygen
Oxygen is the third element of the fire triangle and is essential for the combustion process.
Fire requires oxygen to burn, and in most cases, this comes from the air around us. The oxygen supply allows the chemical reaction of combustion to continue, producing heat, light, and flame.
In many situations, there is already sufficient oxygen present in the environment to support a fire. Even a small amount of fresh air can sustain combustion, which is why fires can continue to burn in enclosed spaces if oxygen is available.
Oxygen also plays a role in how quickly a fire spreads. Increased airflow can intensify a fire by providing more oxygen, while restricting airflow can slow it down. This is why ventilation must be carefully controlled during a fire.
Fire extinguishing methods often focus on reducing or cutting off the oxygen supply. For example, fire blankets are used to smother flames, effectively removing oxygen from the fire triangle. Carbon dioxide extinguishers work in a similar way by displacing oxygen and stopping the combustion process.
Removing an Element to Stop a Fire
Understanding how to remove one or more elements of the fire triangle is key to effective fire extinguishing.
Reduce heat using fire extinguishers or water mist systems
Reducing heat is one of the most common methods of extinguishing a fire. Fire extinguishers that use water or fine mist cool the burning material, lowering its temperature below the ignition point.
Water mist systems are particularly effective because they use fine droplets to absorb heat quickly while also helping to reduce oxygen levels locally. This dual action makes them a powerful solution for controlling fires in both residential and commercial environments.
By removing the heat element, the fire can no longer sustain combustion and is extinguished.
Eliminate fuel by clearing flammable materials or shutting off gas sources
Removing fuel is another effective way to stop a fire. This can involve clearing away combustible material, shutting off gas supplies, or isolating flammable liquids.
For example, in the case of a gas fire, turning off the gas supply removes the fuel source and prevents the fire from continuing. In other situations, moving materials away from the fire can limit its spread.
Eliminating fuel not only helps extinguish existing fires but also plays a major role in fire prevention.
Limit oxygen with fire blankets, covers, or controlled ventilation
Limiting oxygen is a widely used method for controlling fires. Fire blankets can be placed over flames to cut off the oxygen supply, effectively smothering the fire.
In larger settings, controlling ventilation can help manage oxygen levels and prevent the fire from spreading. Closing doors and windows can reduce airflow, while specialised systems can regulate oxygen supply in more complex environments.
By removing oxygen, the combustion process stops, and the fire is extinguished.
Using the Fire Triangle Knowledge to Stay Safe
Understanding the fire triangle provides a practical foundation for improving fire safety in any environment.
By recognising how heat, fuel, and oxygen interact, you can identify potential fire hazards and take steps to prevent fires before they start. For example, keeping heat sources away from flammable materials, ensuring proper ventilation, and maintaining equipment can all reduce risk.
This knowledge also helps in choosing the right fire extinguisher for different types of fire. Different extinguishers are designed to target specific elements of the fire triangle, whether by cooling, smothering, or interrupting the chemical reaction.
In modern fire safety strategies, advanced solutions such as a commercial water mist system provide an effective way to control fires by targeting multiple elements at once. These systems are designed to respond quickly, reducing heat and limiting oxygen while minimising water damage.
For a deeper understanding of how these systems compare to traditional methods, exploring water mist fire extinguishing system can offer valuable insight into their benefits and applications.
Ultimately, the fire triangle is more than just a theory. It is a practical tool that helps individuals and organisations stay safe, respond effectively to fire incidents, and protect people and property. By understanding and applying this simple model, you can take meaningful steps towards better fire prevention and overall safety.
