When it comes to fire safety, prevention is always better than reaction. In the UK, strict building codes require structures to be designed not just to detect and suppress fires, but to contain them. This is where passive fire protection (PFP) becomes crucial. While active fire protection systems such as sprinklers and alarms respond to a fire once it starts, passive systems are designed to limit its spread from the very beginning.
Passive fire protection measures work quietly in the background, forming an integral part of the building’s fire safety strategy. They protect structural elements, slow down the spread of flames and smoke, and provide safe escape routes for occupants. Together with active measures like fire alarms, smoke detectors, and sprinkler systems, they form a comprehensive fire protection strategy that ensures your building remains safe and compliant.
In this blog, we’ll explore what passive fire protection means for your building’s safety, how it works, the key systems involved, and how it differs from active fire protection. By understanding both, you can ensure your building is properly protected from the devastating impact of fire.
What Is Passive Fire Protection?
Passive fire protection refers to the built-in features and materials within a structure that help prevent the spread of fire and maintain its integrity under high temperatures¹. Unlike active fire protection systems, which require human intervention or detection to function, passive systems are always at work, providing constant protection without the need for activation.
These measures are an essential part of any fire safety strategy. They ensure that a building’s structural elements, such as walls, floors, and doors, can resist fire exposure long enough for occupants to evacuate safely and for the fire brigade to respond. The goal is not necessarily to extinguish flames but to contain them within one compartment, preventing the spread of fire and smoke to other parts of the building.
Passive fire protection materials and systems are used across various building components, including walls, ceilings, floors, steel beams, ducts, and service penetrations. Fire-resistant materials, intumescent coatings, and fire-stopping products form barriers that limit damage and maintain stability, protecting both property and lives.
Key Features of Passive Fire Protection Systems
Passive fire protection systems come in many forms, each designed to slow down the spread of heat, smoke, and flames. They form the backbone of your building’s fire safety, ensuring that even during a fire, key structural elements remain protected.
Fire-Resistant Walls, Floors, and Doors
Fire-resistant walls and floors form the foundation of compartmentation, a principle of dividing buildings into sections to stop fire and smoke from spreading. Compartment walls and floors are built using fire-resistant materials tested to withstand high temperatures for a specified period, typically 30, 60, or 120 minutes.
Fire doors also play a critical role in maintaining these barriers. A properly installed and maintained fire door can contain flames and smoke, protecting escape routes and giving occupants crucial time to evacuate. To remain effective, fire doors must be regularly inspected and kept free of obstructions, with all seals and hinges in good condition.

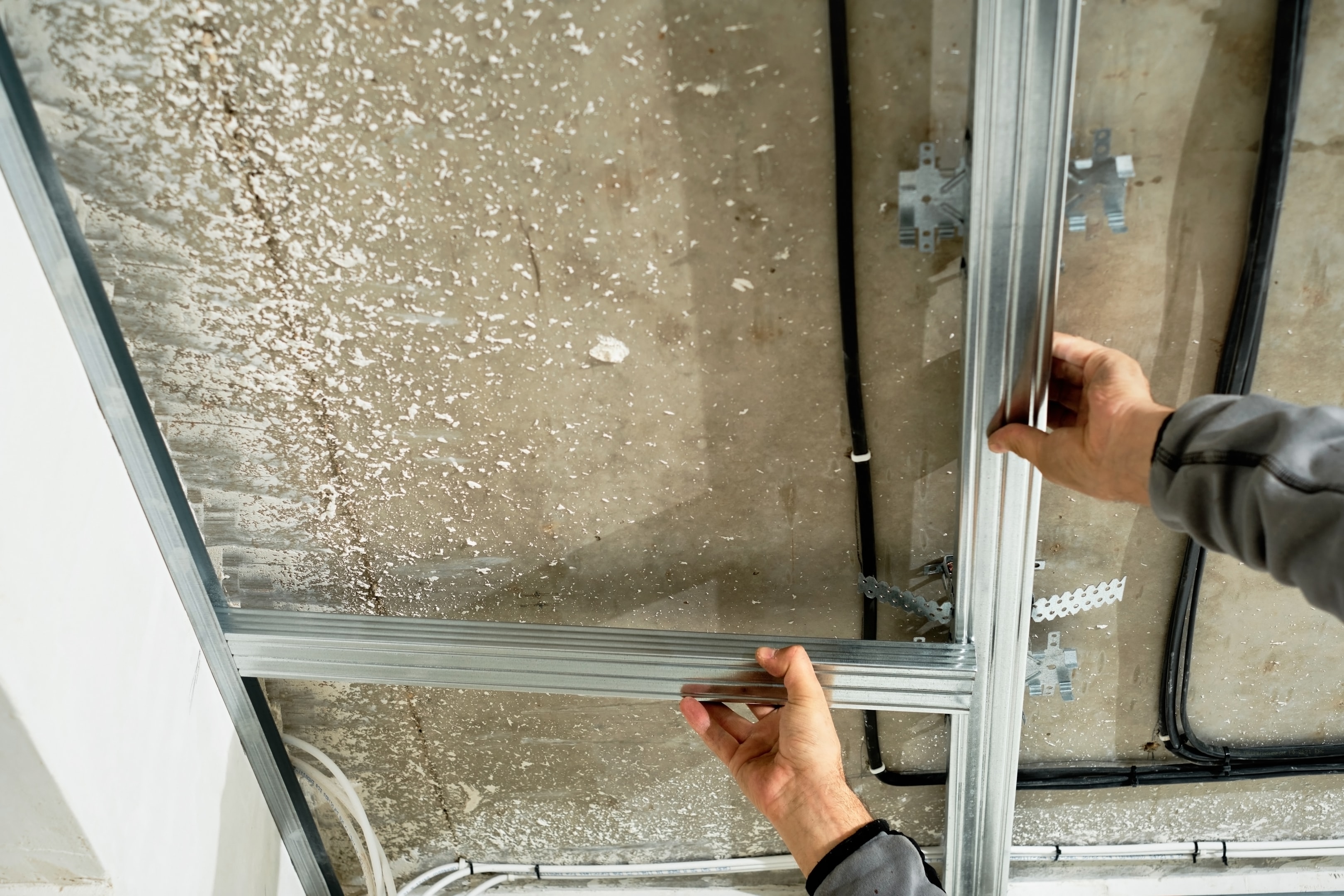

Fire-Stopping Materials and Cavity Barriers
Fire-stopping is another vital aspect of PFP systems. Openings in walls and floors, such as those for pipes, cables, and ducts, can compromise fire resistance if not sealed correctly. Fire-stopping materials, such as sealants, collars, and wraps, are used to close these gaps and restore the fire resistance of the structural element.
Cavity barriers, on the other hand, are installed in concealed spaces like wall cavities or roof voids to stop fire and smoke from spreading unnoticed. Both fire-stopping and cavity barriers are essential for ensuring that the passive fire protection strategy works as intended throughout the building.
Intumescent Paints and Fire-Rated Coatings
Intumescent coatings, also known as intumescent fireproofing, are applied to structural elements like steel beams or columns. When exposed to high temperatures, these coatings expand to form an insulating layer that protects the metal from heat and delays structural failure.
Fire-rated coatings are often used in commercial and industrial buildings where maintaining the strength of steel structures during a fire is critical. They are a discreet yet powerful component of passive fire protection systems, providing protection without affecting the aesthetic of the building.
Fireproof Ductwork and Cable Protection
Ventilation ducts and electrical cables can act as channels for fire and smoke to travel if not properly protected. Fire-resistant ductwork and cable protection systems are therefore essential.
These components are made from fire-resistant materials or lined with fireproof coatings that prevent flames from spreading through air ducts or along cable routes. Regular inspection and ongoing maintenance ensure that these systems continue to perform effectively in the event of a fire.
Structural Compartmentation and Smoke Control
Compartmentation is one of the most important passive fire protection measures. By dividing the building into separate sections, compartment walls and floors contain the fire within its point of origin. This not only protects other parts of the building but also limits structural damage and helps maintain stability.
Smoke control is another crucial element. Well-designed passive systems guide smoke away from escape routes, maintaining visibility and breathable air for occupants. Combined with fire alarms and smoke detectors, this provides a safer evacuation process and supports rescue services during their response.
How It Differs from Active Fire Protection
Both active and passive fire protection measures are vital to a complete fire safety strategy. However, understanding their differences helps building owners and facility managers plan more effectively.
Passive Systems Prevent Fire Spread, While Active Systems Control It
Passive fire protection focuses on containment. Its main goal is to slow or stop the spread of fire, giving occupants time to evacuate and limiting structural damage. Active systems, such as sprinkler systems or fire extinguishers, are designed to control or suppress the fire once it’s detected.
While passive systems form the first line of defence, active systems are your second response; they engage once a fire has already started. For example, sprinkler systems and water mist fire extinguishing systems release water or mist to control flames and reduce temperature, complementing the work of passive barriers.
Passive Fire Protection Works Continuously, Active Systems Activate in Response
Passive fire protection systems are always in place, requiring no alert, human intervention, or detection to function. They provide protection from the moment a fire starts. This includes fire-resistant materials, fire doors, and compartment walls that resist heat and flames automatically.
Active systems, on the other hand, depend on detection and activation. Fire alarms, sprinklers, and extinguishers rely on sensors, electricity, or manual operation. They are highly effective once the presence of fire is confirmed, but inactive beforehand. This is why a balance between the two types is essential in any modern fire safety strategy.
Active Systems Like Water Mist Complement Passive Barriers for Full Coverage
For total building protection, both systems should work together. Passive systems provide containment, while active systems, such as water mist fire suppression systems, help to suppress flames and cool down affected areas. Water mist technology uses fine droplets to absorb heat efficiently, reducing the risk of reignition while minimising water damage.
Together, these systems provide a comprehensive approach: passive fire protection contains and isolates the fire, while active fire protection measures control and extinguish it. This layered defence not only protects the building structure but also ensures the safety of its occupants and supports the fire brigade during rescue operations.
The Importance of Integrating Passive and Active Fire Protection
A building’s fire safety strategy must include both active and passive measures to meet safety regulations and protect against a wide range of fire scenarios. Passive fire protection systems provide structure and containment, while active systems deliver response and suppression.
During construction, architects and engineers must select fire-resistant materials that can withstand prolonged heat exposure and undergo rigorous fire tests. The placement of compartment walls, fire doors, and barriers must comply with building codes to ensure adequate protection and safe evacuation routes.
Once the building is occupied, ongoing maintenance and testing are vital. Fire doors must remain unobstructed, seals should be replaced as needed, and both active and passive systems should be regularly inspected by professionals. Maintaining a proactive fire safety culture, from regular drills to equipment servicing, ensures your protection systems perform as intended.
Final Thoughts
Passive fire protection is the unsung hero of modern fire safety. While active systems like sprinklers and fire extinguishers take immediate action, passive systems quietly maintain the building’s structural integrity, contain fires, and safeguard escape routes. Both are essential components of a complete fire protection strategy that protects buildings, occupants, and assets.
From fire-resistant walls and doors to intumescent coatings and cavity barriers, every element plays a role in preventing the spread of fire and smoke. A well-designed combination of active and passive measures provides the highest level of safety, ensuring that even under extreme conditions, your building remains protected.
Whether you manage a residential property, commercial complex, or industrial site, investing in reliable fire protection systems is essential. By understanding the difference between passive and active fire protection and implementing both effectively, you can create a safer environment for everyone, one that withstands fire exposure, supports evacuation, and helps the rescue service respond quickly.
Incorporating both passive fire protection systems and active fire suppression technology like water mist not only ensures compliance with UK building codes but also offers peace of mind that your building and its occupants are as safe as possible.
Source:
- SafetyCulture. (n.d.). Passive fire protection.
